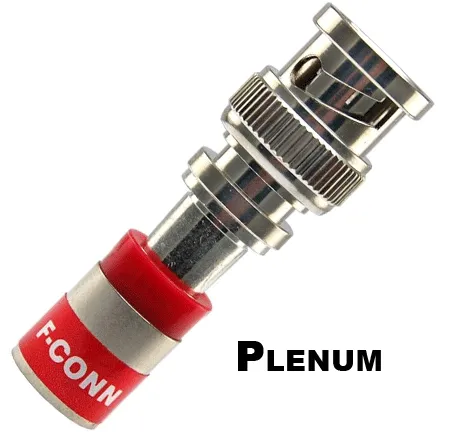

ICM-FS59BNCPL2 PLENUM "BNC" CONNECTOR
The FS59BNCPL2 is our “BNC” type connector that fits most RG59 Plenum
coaxial cable
Specifications:
Coax Sizing (inches) Min ~ Max
Center .0317 ~ .0339
Dielectric .130~.137
Outer Jacket .190 ~ .220
Coax Sizing (mm) Min ~ Max
Center .81~.86
Dielectric 3.30 ~3.48
Outer Jacket 4.83 ~ 5.59
• 75 Ohm Construction
• DC-1 GHz> 27 dB Return Loss < 1.10 VSWR
• DC-2 GHz> 23 dB Return Loss < 1.16 VSWR
• DC-3 GHz> 22 dB Return Loss < 1.18 VSWR
• Cable Pullout Force Exceeding 65 in/lbs.
• Body Material Brass
• Body Material (Plating) Nickel
